UD407 $695,000.00 – ALSO Available for Short and Long Term Rental

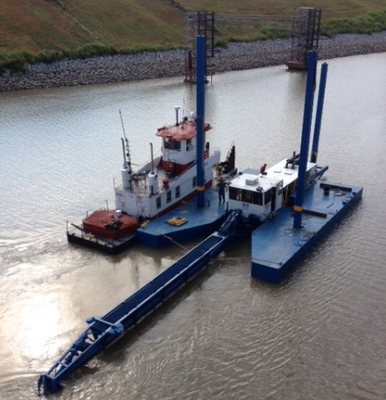

Completely Re-manufactured 12" DSC Dredge
Heavy-duty Metso Dredge Pump, 14" (350mm) suction x 12" (300mm) discharge, 36" (900mm) impeller diameter.
Main diesel engine is a Caterpillar model 3412DITA, rated 750 hp (559 kW) @ 2100 rpm.
Main engine reduction gear is a Twin Disc model MG-5202, 3.48:1 reduction ratio
Hauling & hoisting functions - swing, ladder, and spuds - are all controlled by hydraulic winches
Ladder length is 41 ft (12.5 m) for maximum dredging depth of 30 ft (9.1 m)
3-piece hull, assembled dimensions: 55ft x 18ft-3in x 5ft (16.8 m x 5.6 m x 1.5 m)
